Capacity Chart

Capacity Chart

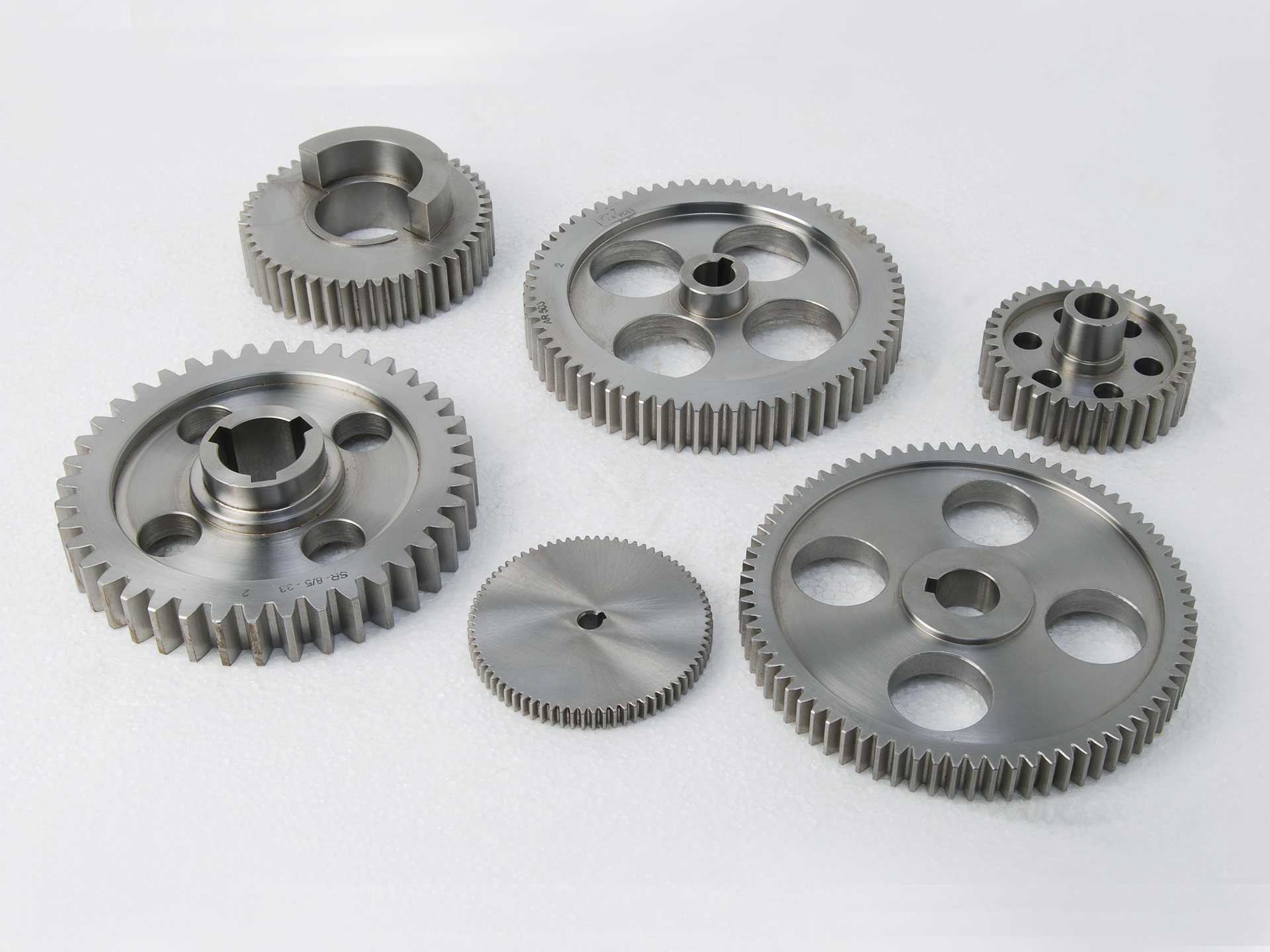

Spur & Helical Gear

DIA (mm) MODULE F.W. (mm)
Grinding-External 1500 30 600
Grinding-Internal 600 8 200
Hobbing 2500 24 750
Shaping 1000 12 200
Shaving 800 10 100
Lapping 250 6 70

Bevel Gear

DIA (mm) MODULE F.W. (mm)
600 (Cone dist. 300) 8 100

Spiral Bevel Gear

DIA (mm) MODULE F.W. (mm)
400 (Cone dist. 230) 13 70

Worm Shaft

DIA (mm) MODULE Bet. Centre
Milled 250 16 2000
Ground 200 16 1100

Worm Wheel

DIA (mm) MODULE
2400 24

Spline Shaft

DIA (mm) Bet. Centre
Milled 250 2000
Ground 250 1000

Rack

Module Length
Gear Shaping 8 800
Teeth Ground 10 1000
