STRAIGHT / SPRIAL BEVEL GEAR

No. Name of Machine Make Size & Capacity (in mm.)
1 Spiral Bevel Gear Generator Gleason No. 7A - USA 215 dia. x 6 Mod. x 50 FW
2 Spiral Bevel Gear Generator Gleason No. 116 - USA 460 dia. x 12 Mod. x 75 FW
3 Spiral Bevel Gear Generator Gleason No. 16 - USA 460 dia. x 12 Mod. x 75 FW
4 Spiral Bevel Gear Lapper Cum Tester Gleason No. 17 - USA 500 dia.
5 Cutter Sharpener Gleason No.13 - USA 31/2" to 16” Cutter Diameter
6 Bevel Gear (Angular) Tester Gleason No.17 - USA 500 dia.
7 Straight Bevel Gear Generator (2 Nos.) Russian 5A26 600 dia. x 8 Mod. x 100 FW
8 Straight Bevel Gear Generator WMW MODUL ZStTK - Germany 280 dia. x 8 Mod. x 70 FW
9 Straight Bevel Gear Generator Gleason No. 3A - USA 100 dia. x 3 Mod.
10 Straight Bevel Gear Generator H & H Type 26

SPUR / HELICAL GEAR

No. Name of Machine Make Size & Capacity (in mm.)
1 CNC Gear Hobbing Eifco 500 R 7 Axis 500 Dia. X 8 Mod.
2 Gear Hobbing TOS F025 - Czechoslovakia 3000 dia. x 30 Mod.
3 Gear Hobbing TOS F016 1600 dia. x 16 Mod.
4 Gear Hobbing Lorenz 600 dia. x 8 Mod.
5 Gear Hobbing (CNC Retrofitted) Lorenz 600 dia. x 8 Mod.
6 Gear Hobbing Liebherr L- 650 - Germany 650 dia. x 10 Mod.
7 Gear Hobbing Barber – Colman I6-I6 - USA 250 dia. x 6 Mod.
8 Gear Hobbing (2 Nos.) CIMA Italy 150 dia. x 2.5 Mod.
9 Gear Hobbing TOS F06 - Czechoslovakia 600 dia. x 6 Mod.
10 Gear Hobbing Dowding & Doll England 100 dia. x 2 Mod.
11 Worm Gear Generator David Brown England 600 dia. x 8 Mod.
12 CNC Gear Shaper Fellows Hydrostroke –FS400-125 400 Dia. X 8 Mod. X 125 Strokes
13 Gear Shaper Russian 5B150 1200 dia. x 12 Mod. x 200 Strokes
14 Gear Shaper Russian 5A140 800 dia. x 10 Mod. x 125 Strokes
15 Gear Shaper TOS OH6 - Czechoslovakia 600 dia. x 6 Mod. x 100 Strokes with Rack cutting
16 Gear Shaper Sykes V-10A - England 450 dia. x 4 Mod. x 65 Strokes with Rack cutting
17 Gear Shaving Churchill SAC30 - England 800 dia. x 10 Mod.
18 Gear Lapper Red Ring - USA 250 dia.
19 Gear Tooth Rounder Russian SH 580 300 dia. x 4 Mod.
20 Gear Tooth Rounder WMW ZRU 800 x 8 - Germany 800 dia. x 8 Mod.
21 Hob Sharpening 3A662 - Russian 200 dia. x 14 Mod.
22 Hob Sharpening KAPP – Germany 300 dia. x 30 Mod.
23 Gear Tooth Deburring Grindmaster India 500 dia.

GEAR GRINDING

No. Name of Machine Make Size & Capacity (in mm.)
1 CNC Gear Grinding Gleason Pfauter- Germany 1200 Dia. X 30 Mod.
2 CNC Gear Grinding Gleason Pfauter- Germany 800 dia. x 16 Mod (Ext.)
600 dia. x 8 Mod.(Int.)
3 CNC Gear Grinding Luren LFG-3540 Taiwan 400 dia. x 12 Mod.
4 Gear Grinding (2 Nos.) Hofler - Germany 1000 dia. x 12 Mod.
5 Gear Grinding Niles ZSTZ - Germany 800 dia. x 14 Mod.
6 Gear Grinding Niles ZSTZ 315 x 6C - Germany 315 dia. x 6 Mod.
7 Gear Grinding 5A831 - Russian (Multirib) 125 dia. x 2.5 Mod.

WORM SHAFT THREAD MILLING/GRINDING

No. Name of Machine Make Size & Capacity (in mm.)
1 CNC Worm Grinding Luren – Taiwan 300 dia. x 1200 ABC Mod. upto12
2 Worm Thread Milling Lindner-Germany 400x 2000 ABC -Worm Mod. upto 10
3 Worm Thread Milling WMW ZFWVG - Germany 250 x 2000 ABC -Worm Mod. upto 10
4 Worm Thread Milling Lees Bradner 1000 ABC -Worm Mod. upto 5
5 Worm Thread Grinding Matrix No. 47 - England 350 x 1070 ABC -Max. lead 315 mm
6 Worm Thread Grinding Matrix No. 37 - England 350 x 600 ABC -Max. lead 315 mm

SPLINE SHAFTS GRINDING

No. Name of Machine Make Size & Capacity (in mm.)
1 Spline Grinder Russian 3M451 1000 ABC

O/D, I/D, SURFACE GRINDING

No. Name of Machine Make Size & Capacity (in mm.)
1 Internal Grinding D 14 Jung - Germany 250 I.D. x 150 Ig. x 450 dia.
2 Internal Grinding Vomard type - 6A 300 I.D. x 350 Ig. x 600 dia.
3 Internal Grinding UVA - UHV - 225P 305 I.D. x 450 Ig. x 450 dia.
4 Internal Bore Grinder 3A227T - Russian 300 I.D. x 250 Ig. x 600 dia.
5 Internal Bore Grinder 3A227T - Russian 300 I.D. x 250 Ig. x 600 dia.
6 Internal Honning Sunnen- USA
7 CNC Cylinder Grinding Studer- 1000 ABC
8 Cylindrical Grinding HMT - K130U 130 dia. x 800 ABC
9 Cylindrical Grinding Toyada - Japan 250 dia. x 1500 ABC
10 Cylindrical Grinding Matrix GU33 x 1150 - Okuma 500 dia. x 1200 ABC
11 Cylindrical Grinding Studer - RH 750 240 dia. x 750 ABC
12 Cylindrical Grinding TOS - Czechoslovakia 240 dia. x 500 ABC
13 CNC Surface Grinding WMW SFW 400/3 x 1500 - Germany 500 x 1500 Table
14 Surface Grinding Machine ELB Schliff - India 600 x 400 with Rack GrindingAttachment
15 Rotary Surface Grinding Snow - England 500 dia.
16 Rotary Surface Grinding Precimax Landis England 1170 Dia. x 530gap between Wheel and Chuck
17 Center Grinder Accumax CG 200W - Bangalore 1000 ABC

CNC MACHINING CENTRE

No. Name of Machine Make Size & Capacity (in mm.)

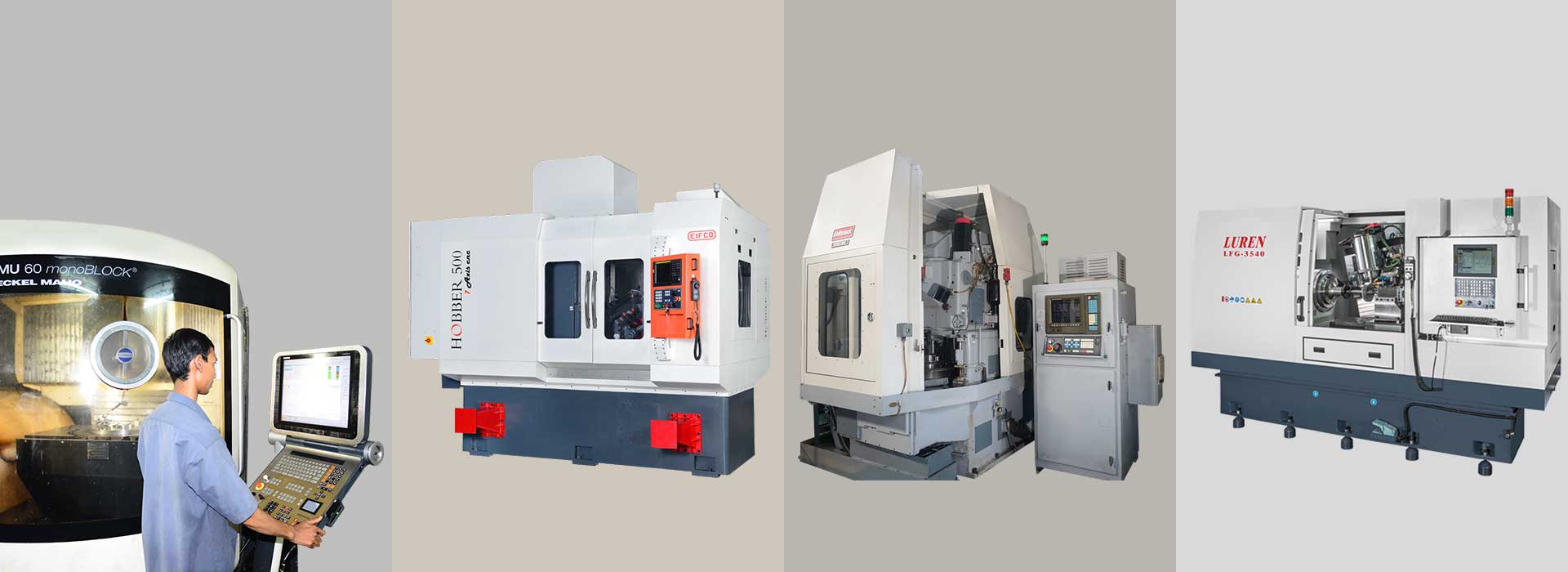

1 5 Axis VMC DMU 60 Monoblock – DMG MORI SEIKI 1000 mm x 600 mm Table Size
2 3 Axis VMC Wadkin V5 – 10 - England 1150 x 600 Table + X - 1000, Y - 500, Z - 780 With Spindle nose to table 865 max., Indexing Head & Twin Pallet
3 3 Axis VMC Mazak-Japan
4 3 Axis HMC Matrix H63 - England 700 x 700 Table + X - 1000, Y - 500, Z - 630 With Rotary table & Twin Pallet

BROACHING & KEYWAY

No. Name of Machine Make Size & Capacity (in mm.)
1 Broaching HMT - RW16 -Horizontal 16 Ton x 1600 Stroke Length
2 Broaching HMT - RW5 -Horizontal 5 Ton x 1320 Stroke Length
3 Slotting Moray - USA 1500 dia. x 350 mm Stroke
4 Slotting PSG ESM/105 300 dia. x 50 mm Stroke

BORING

No. Name of Machine Make Size & Capacity (in mm.)
1 Jig Boring Mitsui Seiki 4B - Japan 700 x 500 table with DRO
2 Jig Boring Newall JB.24A51- England 610 x 1295 Table with DRO + X - 914, Y - 600 Spindle nose to table - 914 Max
3 Jig Boring Horizontal (2 Nos.) Dixi 3S - Switzerland 810 x 810 table with DRO.

BLANKING / MILLING / SHAPPING / DRILLING

No. Name of Machine Make Size & Capacity (in mm.)
1 CNC Lathe. Mac Power 200 dia. x 750 b/c
2 CNC Lathe Mac Power 250 dia. x 1000 b/c
3 CNC Lathe Wickman-England 350 dia. x 500 b/c
4 CNC Lathe Weiler Primus 2 CNC - Germany 120 dia x 500 lg.
5 CNC Lathe HMT NH CNC 575 -1350 / 135C 500 dia x 1350 ABC
6 CNC Lathe Takisawa TS 25 250 Dia. X 750 b/c
7 CNC VTL TOS- Czechoslovakia 800 dia.
8 VTL (CNC Retrofitted) Bertheiz- France 800 dIa.
9 VTL (CNC Retrofitted) Bertheiz- France 1500 dIa.
10 VTL Webster & Bennett 48” - England 1000 dia.
11 VTL Webster & Bennett 48” - England 1200 dia.
12 Center Lathe (4 Nos.) Kirloskar / HMT 1500 ABC
13 Facing & Centering Giddings & Lewis
14 Universal Milling (2 Nos.) HMT - M 2/U 1000 x 280 Table
15 Vertical Milling HMT - FNIV 600 x 200 Table
16 Keyway Milling Hurth - Germany 1000 x 300 Table
17 Shaping Machine Cooper - CSM63 600 Strokes
18 Radial Drill WMW BR40/2x1250 - Germany 40 dia. x 1250 arm
19 Radial Drill HMT RM.61 40 dia. x 1000 arm

HEAT TREATMENT

No. Name of Machine Make Size & Capacity (in mm.)
1 Electrically heated fan circulation furnace with Temp. recorder Ace Thermo -Mumbai 600 dia. x 1000 lg. Hardening & Tempering
2 Gas Carburising Furnace Quartet - Mumbai 1000 dia. x 1320 lg.
3 Muffle Furnace Quartet - Mumbai 750 x 500 x 1600
4 Pit Type Tempering Furnace Quartet - Mumbai 1120 dia. x 1320 lg.
5 Gleason Quench Press USA No.26 600 dia.
6 Shot Peening Machine PN-01.004 Precicut
7 Wire cutting (EDM) - 2 Nos. Suzhou Baoma

GEAR INSPECTIONS

No. Name of Machine Make Size & Capacity (in mm.)
1 CNC 4 Axis Gear Tester GLEASON -USA GMS - 850 1000 dia x 25 Mod.
2 Gear Profile / Lead Tester MAAG - Switzerland PH 100 1000 dia. x 20 Mod.
3 Gear Profile / Lead Tester Osaka GC-3HL - Japan 600 dia. x 10 Mod.
4 Gear Profile / Lead Tester Frenco SH 450 - England 450 dia x 10 Mod.
5 Gear Profile / Lead Tester Klingelnberg- PFS 600 600 dia. x 20 Mod.
6 Gear Pitch Tester Carl Zeiss - Germany 350 dia. for Spur/Helical/ Bevel
7 Gear Roll Tester Carl Zeiss - Germany 300 dia. for Spur/Helical/ Bevel and Worm Wheel
8 Worm & Wheel Roll Tester Parkson - England 200 centre distance
9 Worm & Wheel Roll Tester Goulder - Mikron England 1000 centre distance
10 Gear Roll Tester David Brown No. 9 England 200 dia. for Spur/Helical/ Bevel and Worm Wheel
11 Gear Roll Tester Goulder – Mikron Model 3R- England 450 b/c for Spur and Helical Gear
12 Gear Roll Tester Goulder – Mikron Model 4R- England 600 b/c for Spur and Helical Gear
13 Hob / Worm Checking Klingelneberg – PWF 300 305 dia. 900 bet. c/c.
14 Profile Projector J & lL PC – 14A – USA 350 dia Screen
15 3 D CMM Accurate X – 800, Y-1000, Z-600
16 Video Measuring System Sipcon
17 Digital Height Gauge Tesa Microhite - Switzerland 515 height - 0.001 Least Count
18 Optical Dividing Head Sopelem - France 150 C/H, 600 ABC

MATERIAL TESTING

No. Name of Machine Make Size & Capacity (in mm.)
1 Universal Tensile Testing Machine Computerized with Electronic extensometer TUE-C-200 FSA 200 Kn
2 Spectrometer – Optical Emmision Metavision
3 Digital Hardness Tester Wilson Rockwell - USA
4 Micro Hardness Tester MO - Tukon - Wilson - USA
5 Magnaflux K. Elec. - Mumbai 3000 Amp
6 Brinell Hardness Tester B - 3000 : 0 - Saroj

OTHERS

No. Name of Machine Make Size & Capacity (in mm.)
1 DG Set 2Nos. Kirloskar Cummins 125 KVA
